KM127C-060-5L38-ST - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Standard

Standard Male Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 60.00 mm
    (Equiv. 2.362 in.)
  • Thread Length 38.1 mm
    (Equiv. 1.5 in.)
  • Colour Black
  • Hub Diameter (C) 21.08 mm
  • Hub Length (D) 21.08 mm
  • Knob Height (B) 37.08 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KHY-585
  • KHY585
View full details

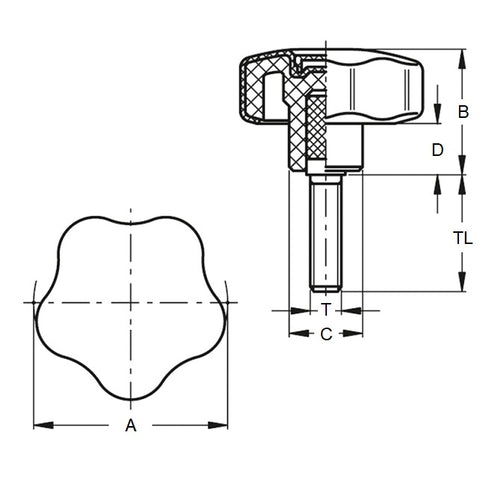

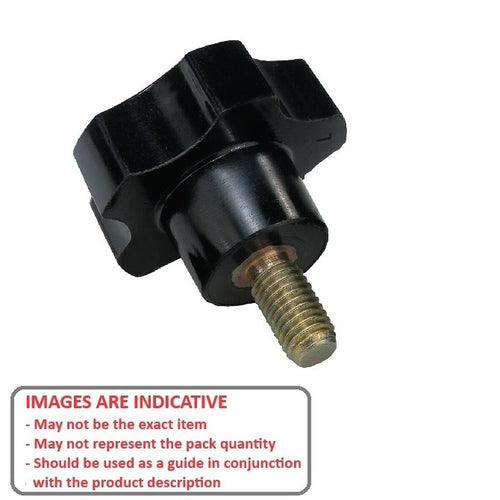

KM127C-060-5L38-STDiagramKM127C-060-5L38-STImage
