PLST-127C-222-HKASLLK-022 - Datasheet
MBA
Category Information

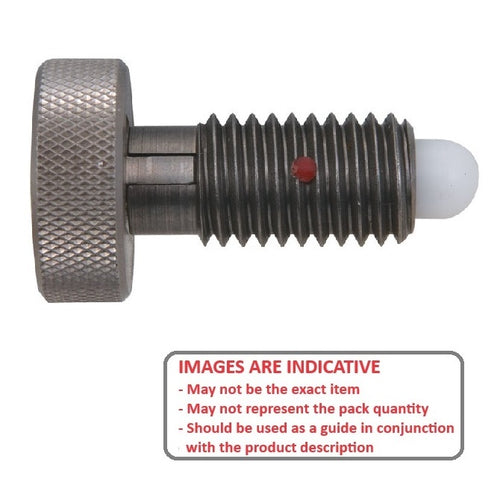

Plungers - Spring - Knurled Handle - Locking - Stainless-AcetalStainless-Acetal Locking Knurled Handle Spring Plungers. Steel body with acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

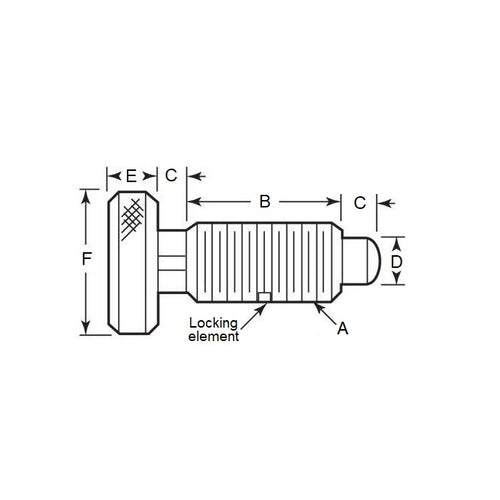

- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Thread Length (B)
22.2
mm
(Equiv. 0.874 in.) - Initial Pressure (F1) 5.6 N
- Final Pressure (F2) 22.2 N
- Tip Diameter (D) 7.9 mm
- Tip Length (C) 6.4 mm
- Head Height (E) 9.5 mm
- Head Diameter (F) 25.4 mm
- Additional With Locking Element
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- NKP19N
- NKP-19N
