PLST-127C-191-HKS-044 - Datasheet
MBA
Category Information

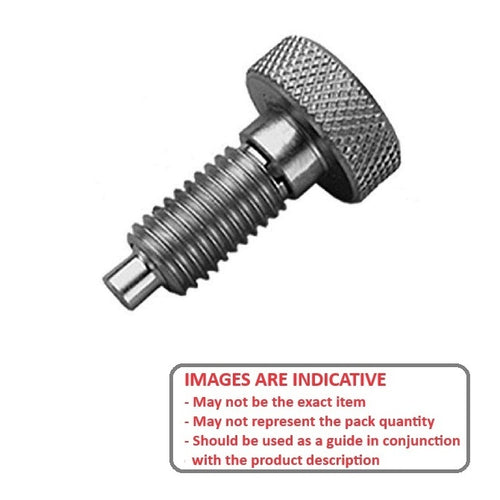

Plungers - Spring - Knurled Handle - Non Locking - StainlessStainless Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Thread Length (B)
19.1
mm
(Equiv. 0.752 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 44.5 N
- Tip Diameter (D) 6.3 mm
- Tip Length (C) 6.4 mm
- Head Length (F) 15.9
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 84935A41
- PHR-44SS
- PHR44SS
