THS127C-038-H-CB - Datasheet
MBA
Category Information

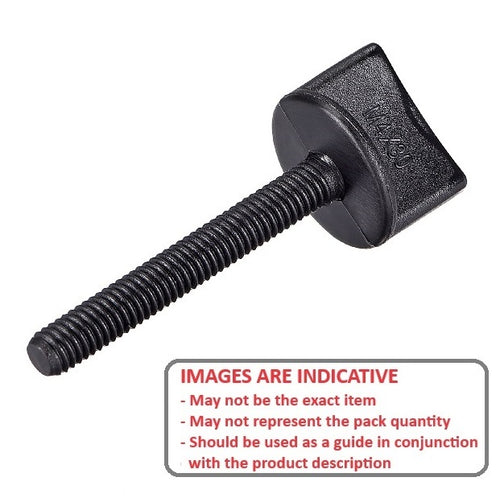

Screws - Thumb - Half TurnHalf Turn Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

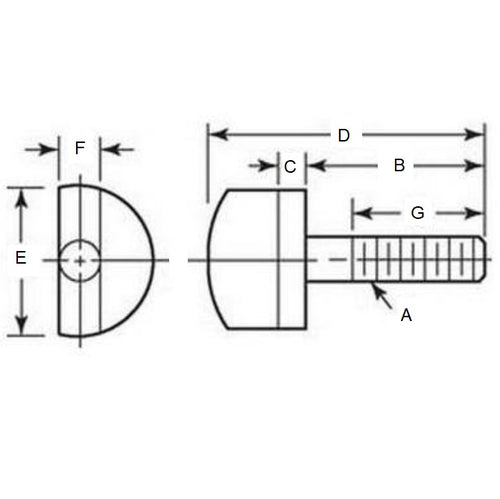

- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Thread Length (G)
38.10
mm
(Equiv. 1.5 in.) - Overall Length (D)
69.85
mm
(Equiv. 2.75 in.) - Head Diameter (E/F) 31.75 / 12.70 mm
- Finish Black Oxide
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- HTS-720
- HTS720
