THS127C-038-F-MI - Datasheet
MBA
Category Information

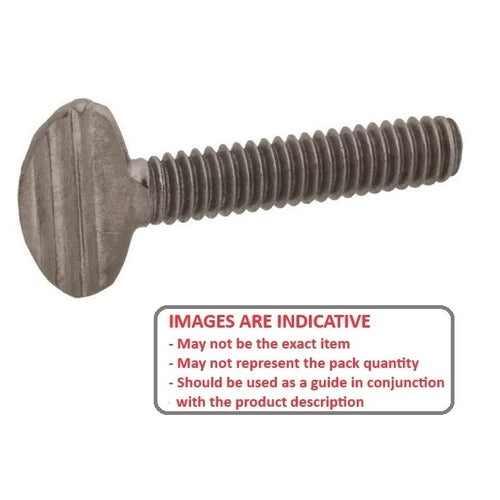

Screws - Thumb - Flat Key Head - StandardStandard Flat Key Head Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

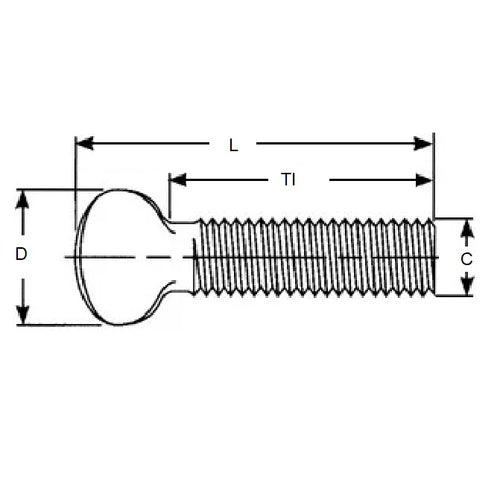

- Thread Size (C) : 1/2-13 UNC (12.7mm)
- Thread Length (Tl)
38.10
mm
(Equiv. 1.5 in.) - Overall Length (L)
61.91
mm
(Equiv. 2.437 in.) - Head Diameter (D) 33.34 mm
- Finish Tumbled
- Head Type Flat Key
- Material Malleable Iron
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT29
- MIT-29
