SK127W-064-SL-S4 - Datasheet
Brighton Best
Category Information
Screws - Countersunk - Slotted - 304 Stainless304 Stainless Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

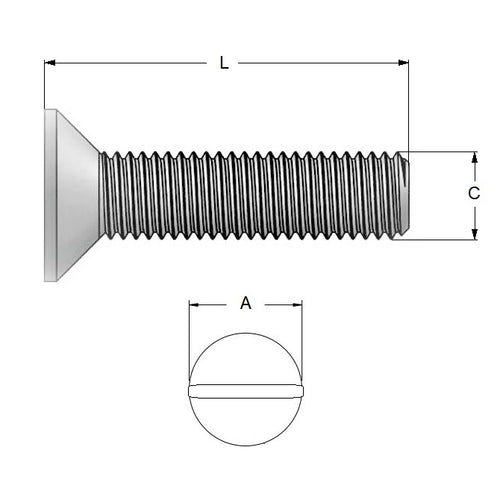

- Thread Size (C) : 1/2-12 BSW (12.7mm)
- Overall Length (L)
63.5
mm
(Equiv. 2.5 in.) - Material 304 Stainless
- Max Head Diameter (A) 24.31 mm
- Max Head Height 5.66 mm
- Type Countersunk / Slotted
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 726905
