SK127W-051-SL-CZ - Datasheet
MBA
Category Information

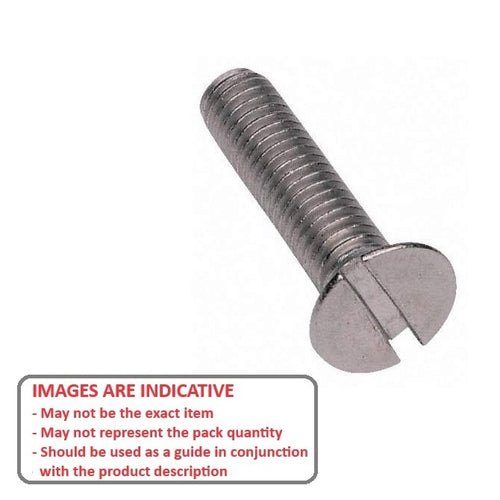

Screws - Countersunk - Slotted - SteelSteel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 1/2-12 BSW (12.7mm)
- Overall Length (L)
50.8
mm
(Equiv. 2 in.) - Material Zinc Plated Steel
- Max Head Diameter 24.31 mm
- Max Head Height 10.0 mm
- Type Countersunk / Slotted
- Pitch 2.117 mm
- Threads Per Inch 12 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSCSZP122
