Miniature Bearings Australia

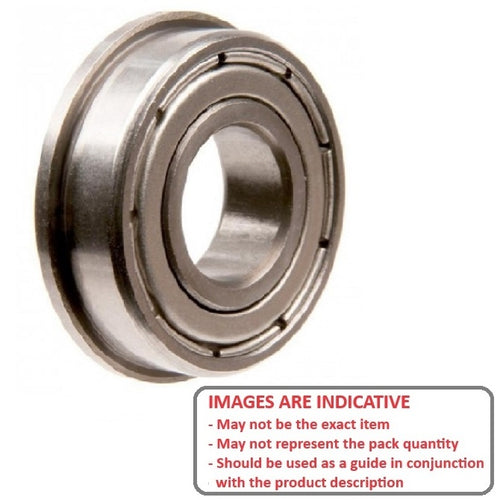

SFR0A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

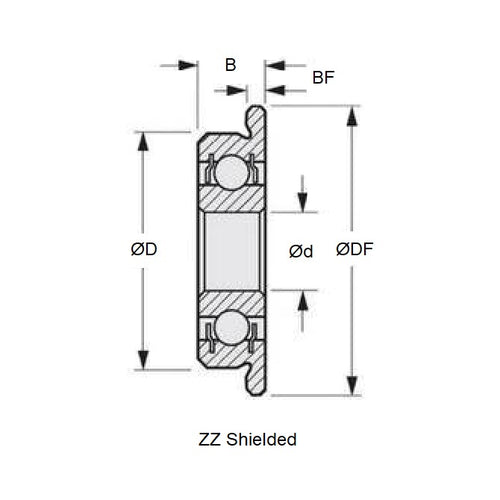

- ID (d)
:
1.191
mm
+ 0.000 / - 0.0075
(Equiv. 0.047 in.) - OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.) - Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.) - Flange Diameter (DF) 5.156 mm
- Flange Width (BF) 0.787 mm
- Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FR0A
- Limiting Speed 110000
- Cage Type Standard
- Static Load Rating KGf 3.5
- Dynamic Load Rating KGf 11
- Radii 0.10 mm
- Inner Shoulder (UI) 2.15mm
- Outer Shoulder (UO) 3.50 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 57155K307
- Similar Part FLWRA0A
- NTN FLWRA0-ZZA
- Stainless Alternative FR0AZZMC3
- Stainless Alternative FR0A-ZZ-MC3
- MPB S2.1-2FCHH
- MPB S2.1-2FC-ZZ
- GRW SF1191-2Z
- Shielded Width A SFR0/2.381
- Shielded SFR0A / 2
- ISO SFR0ZZ
- ISO SFR0-ZZ
- NHBB SSFR0PP
- ADR WFX3-64-ZZ
- S212FCZZ
- S212FCHH
- WFX364ZZ
- SSR1F-2-1-2-ZZ
- SS-R1F-2-1-2-ZZ
- SSR1F212ZZ
- SFR0A-ZZMC3
- SFR0SS
- SFR0AZZMC3
- DDR1F212ZZ
- DD-R1F-2-1-2-ZZ
- DDR1F-2-1-2-ZZ
- FLWRA0ZZA
- SF11912Z
- ULKZ1505X
- FR0A Basic Size Ref
