Miniature Bearings Australia
SHM-1000-0150-0100-BR - Datasheet
MBA
Category Information
Shim and Foil - BrassBrass Shim and Foil. Precision brass shim sheet, rolls and strip.
- Precision shim sheets allow you to fill small gaps and ensure precise fitting of components, preventing wear and tear, make very small adjustments to the alignment or spacing of parts in machinery and other assemblies.
- This product is meant for engineering applications not decorative applications. NOTE! Very thin sizes may experience some bending or indentations.
- Includes K&S Metals range and more
- See Brass - Strip for thin strips

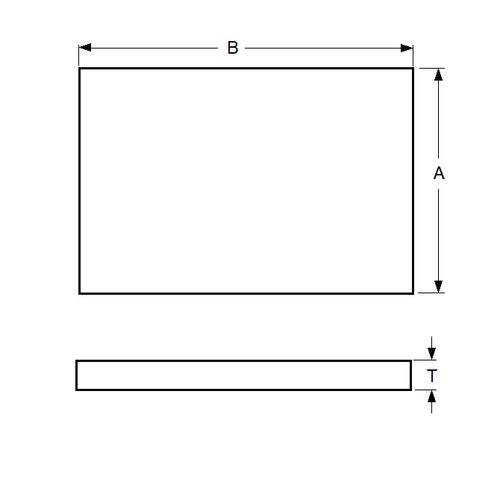

Product Data
- Thickness (t)
:
1.000
mm
+ 0.050 / - 0.050
(Equiv. 0.039 in.) - Width (w)
150.0
mm
+/- 0.3
(Equiv. 5.906 in.) - Length (l)
100.0
mm
+ 0.5 / - 0.5
(Equiv. 3.937 in.) - Pack Size Single Sheet
- Hardness C2801P / C2680P
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Misumi TB100-150-10
- TB10015010
