PSP-008-004-S2 - Datasheet
MBA
Category Information

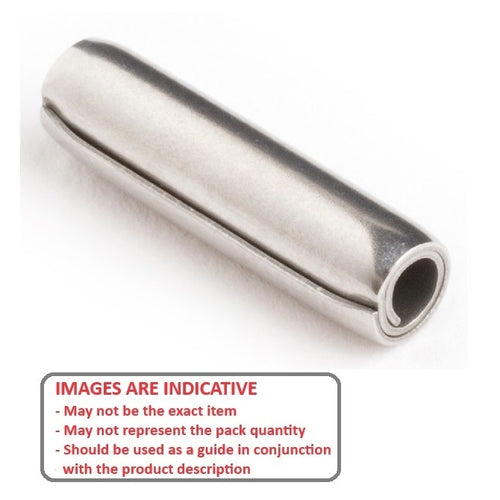

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Hole Diameter
:
0.80
mm
(Equiv. 0.031 in.) - Length
4.00
mm
+/- 0.25
(Equiv. 0.157 in.) - Drill Size
0.80 - 0.84
mm
(Equiv. 0.031 in.) - Loose Diameter 0.85 - 0.91 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- EP084
- EP0.8-4
