SHM-0813-0102-0254-BR - Datasheet

MBA

Category Information

Shim and Foil - Brass

Brass Shim and Foil. Precision brass shim sheet, rolls and strip.

  • Precision shim sheets allow you to fill small gaps and ensure precise fitting of components, preventing wear and tear, make very small adjustments to the alignment or spacing of parts in machinery and other assemblies.
  • This product is meant for engineering applications not decorative applications. NOTE! Very thin sizes may experience some bending or indentations.
  • Includes K&S Metals range and more
  • See Brass - Strip for thin strips

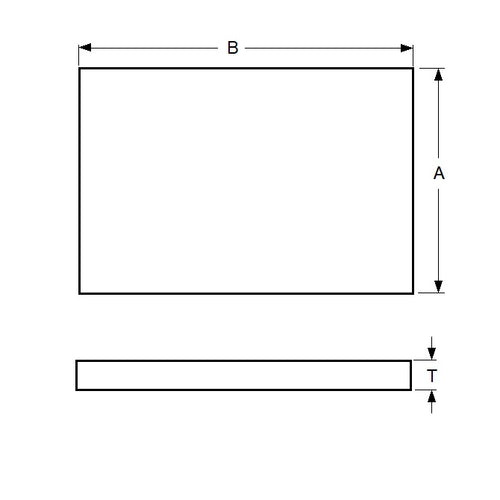

Product Data

  • Thickness (t) : 0.813 mm +/- 0.076
    (Equiv. 0.032 in.)
  • Width (w) 101.6 mm +/- 0.127
    (Equiv. 4 in.)
  • Length (l) 254 mm + / - 0.127
    (Equiv. 10 in.)
  • Pack Size Single Sheet
  • Material Brass Commercial
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KSE KS253
  • KSE KSE-0253BRSS0.032SHT4x10
  • KSE0253BRSS0032SHT4x10
