SS015F-0024-S4 - Datasheet
MBA
Category Information

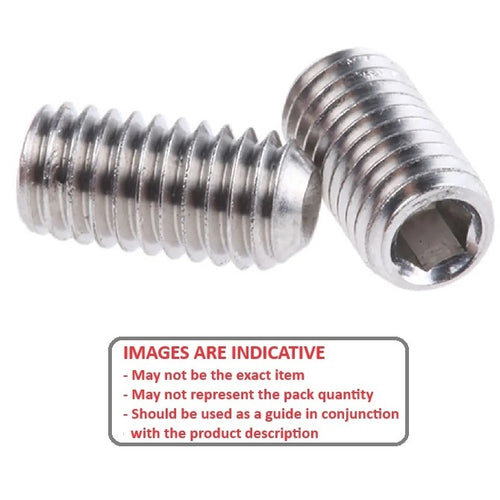

Socket Set Screws - Standard Cup Point - 304 Stainless Steel DIN916304 Stainless Steel DIN916 Standard Cup Point Socket Set Screws. Standard grub screws. UNC - UNF - BA - METRIC.
- Socket driven grub screw with a standard cup point.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 0-80 UNF (1.52mm)

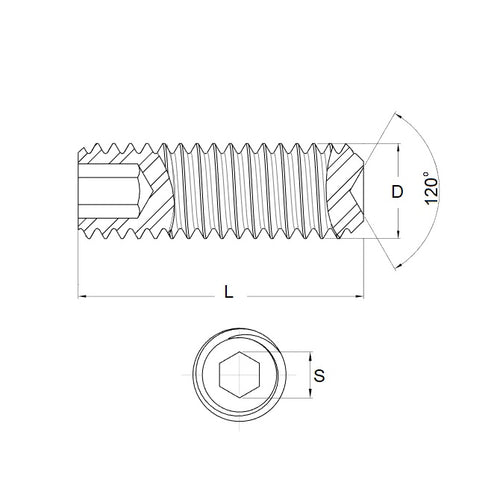

- Thread Length (L)
2.4
mm
(Equiv. 0.094 in.) - Type Standard Cup Point
- Hex Key Size 0.70
- Pitch 0.318 mm
- Threads Per Inch 80 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92311A051
- A9X17008003
- A9X17-008003
