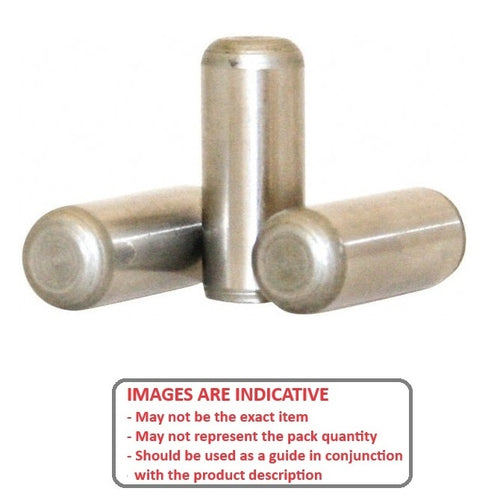

DP007-003-303-1 - Datasheet
NoCor
Category Information
Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless303-304 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 303/304 Grade Stainless - Based on DIN6325, ISO2338, ISO 8734
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
0.792
mm
+ 0.002 / + 0.008
(Equiv. 0.031 in.) - Length (L)
3.18
mm
+/- 0.254
(Equiv. 0.125 in.) - Approx. Overall Length
3.18
mm
+/- 0.254
(Equiv. 0.125 in.) - Type 1 (Chamfer One End)
- Chamfer 0.16 x 15 Deg
- Standard Based on DIN 6325
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWS3-031-0125
- DOWS30310125
- A9X31-0104
- A9X310104
