Miniature Bearings Australia
STR-060-0270-1000-CST - Datasheet
MBA
Category Information

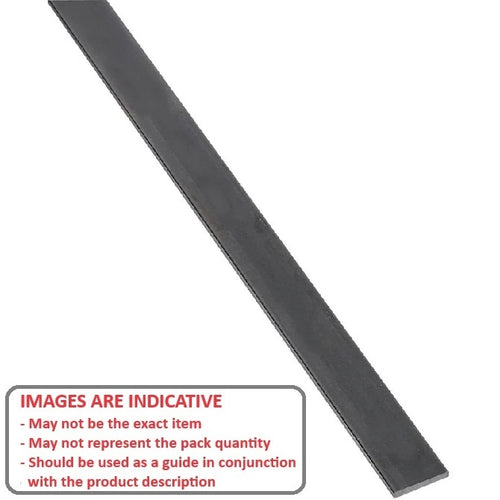

Strip - Spring SteelSpring Steel Strip. Hundreds of uses.
- An expanded range may be available on special order. Please enquire.
- Hardened and tempered spring steel strip
- Note that the width of this strip may vary up to a few mm as it is guillotine cut from sheet
- If you require a closer tolerance on the strip width please contact us prior to ordering
Product Data

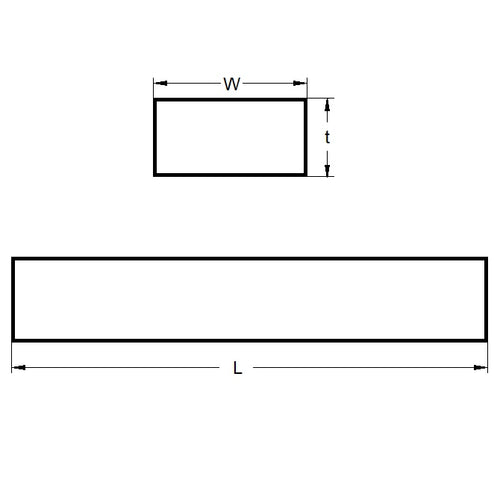

- Thickness (t)
:
0.60
mm
+/- 0.038
(Equiv. 0.024 in.) - Width (w)
27.0
mm
+/- 1.0
(Equiv. 1.063 in.) - Length (L)
1000
mm
Minimum
(Equiv. 39.37 in.) - Description Strip
- Grade SAE1080
- Typical Hardness 44-55 RC
- Material Carbon Spring Steel
