SHM-0076-0152-2540-BR - Datasheet
MBA
Category Information
Shim and Foil - BrassBrass Shim and Foil. Precision brass shim sheet, rolls and strip.
- Precision shim sheets allow you to fill small gaps and ensure precise fitting of components, preventing wear and tear, make very small adjustments to the alignment or spacing of parts in machinery and other assemblies.
- This product is meant for engineering applications not decorative applications. NOTE! Very thin sizes may experience some bending or indentations.
- Includes K&S Metals range and more
- See Brass - Strip for thin strips
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

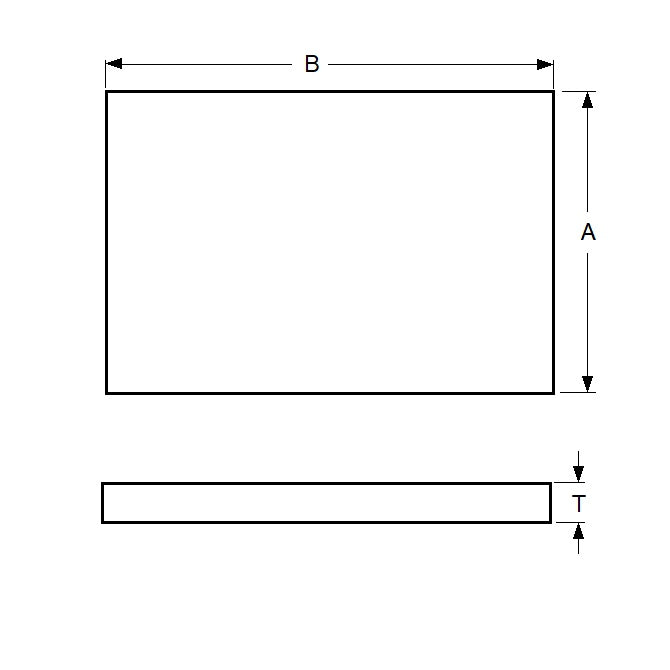

- Thickness (t)
:
0.076
mm
(Equiv. 0.003 in.) - Width (w)
152.4
mm
(Equiv. 6 in.) - Length (l)
2540
mm
(Equiv. 100 in.) - Pack Size Single Roll
- Grade CDA 260
- Hardness Half Hard, Rockwell 30T 56 - 68
- Material Brass Alloy Cold Rolled CDA 260
Product Compliance and Data
Additional Resources
Cross References
- PRECISION 17240
