Miniature Bearings Australia
SHM-0051-0300-0762-BR - Datasheet
MBA
Category Information

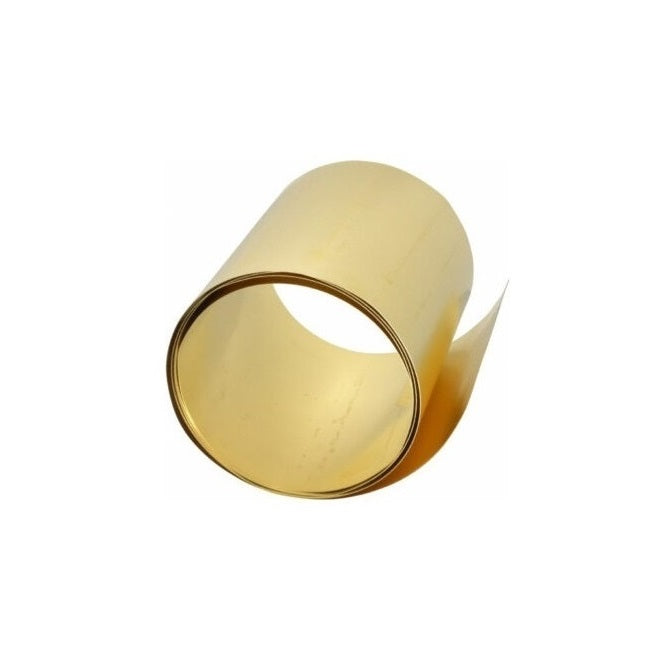

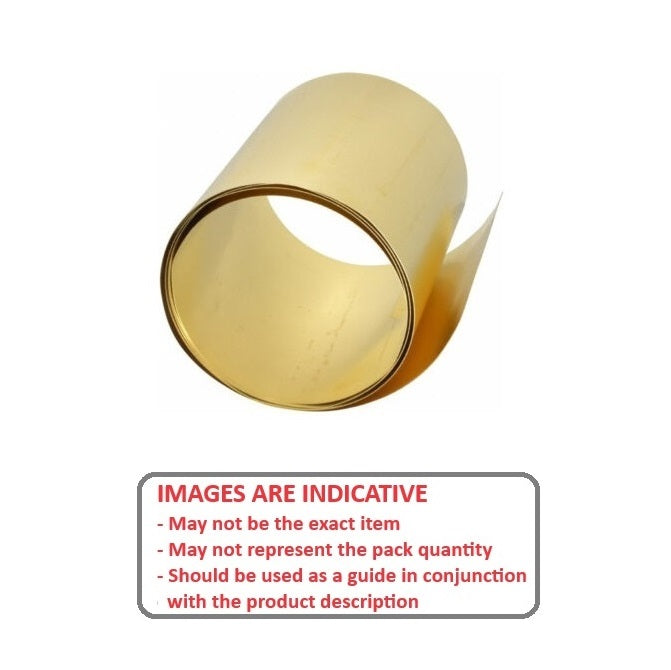

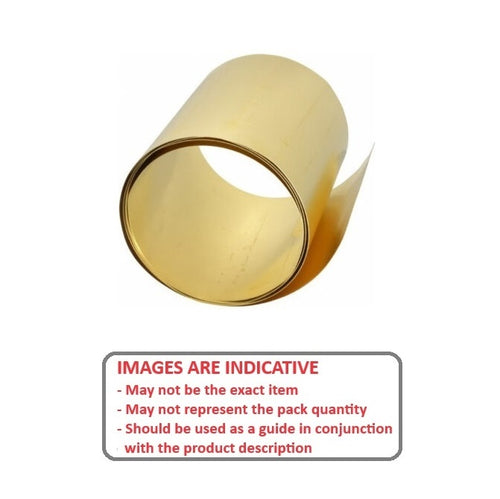

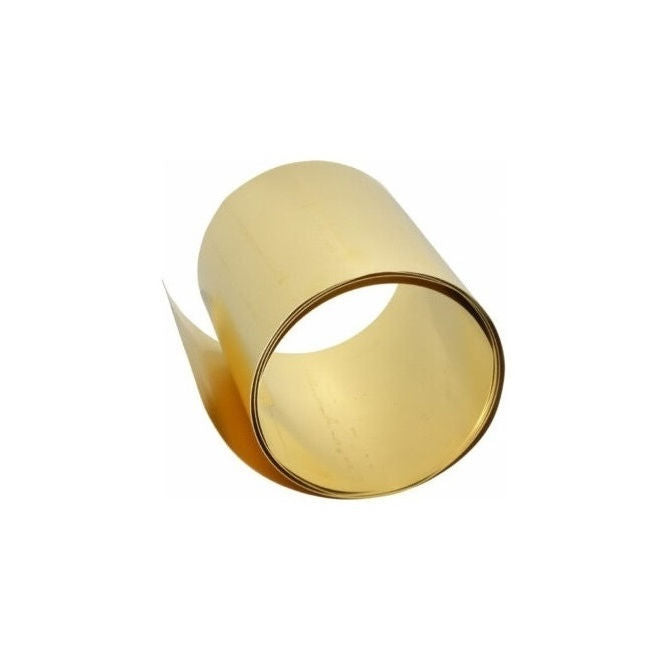

Shim and Foil - BrassBrass Shim and Foil. Precision brass shim sheet, rolls and strip.
- Precision shim sheets allow you to fill small gaps and ensure precise fitting of components, preventing wear and tear, make very small adjustments to the alignment or spacing of parts in machinery and other assemblies.
- This product is meant for engineering applications not decorative applications. NOTE! Very thin sizes may experience some bending or indentations.
- Includes K&S Metals range and more
- See Brass - Strip for thin strips
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

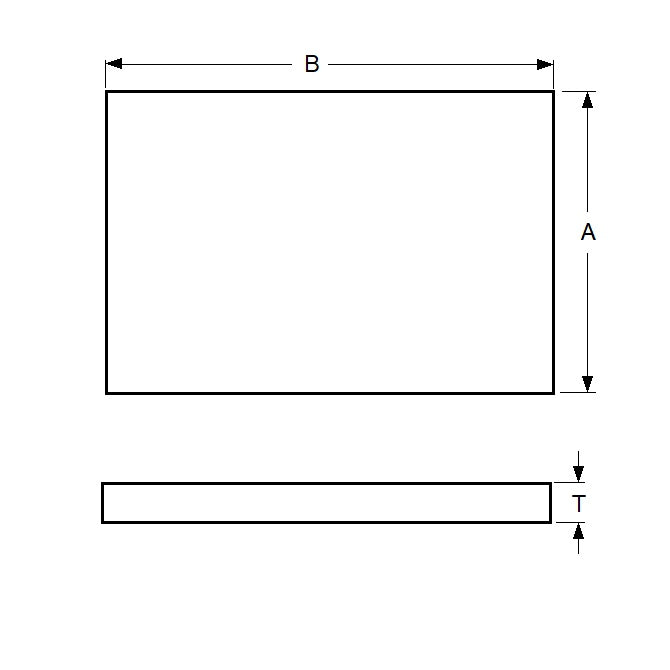

- Thickness (t)
:
0.051
mm
+/- 0.025
(Equiv. 0.002 in.) - Width (w)
300
mm
+/- 0.127
(Equiv. 11.811 in.) - Length (l)
762
mm
+ / - 0.127
(Equiv. 30 in.) - Pack Size Single Sheet
- Gauge 44
- Material Brass Commercial
Product Compliance and Data
Additional Resources
Cross References
- KSE KS6005
- KSE KSE-6005
- KSE6005
