SHM-0025-0152-2540-BRH - Datasheet
MBA
Category Information

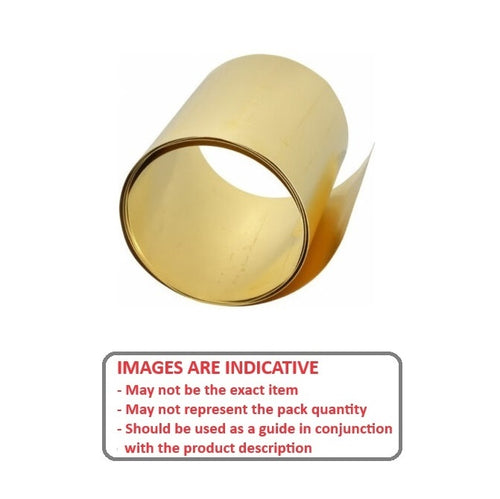

Shim and Foil - BrassBrass Shim and Foil. Precision brass shim sheet, rolls and strip.
- Precision shim sheets allow you to fill small gaps and ensure precise fitting of components, preventing wear and tear, make very small adjustments to the alignment or spacing of parts in machinery and other assemblies.
- This product is meant for engineering applications not decorative applications. NOTE! Very thin sizes may experience some bending or indentations.
- Includes K&S Metals range and more
- See Brass - Strip for thin strips

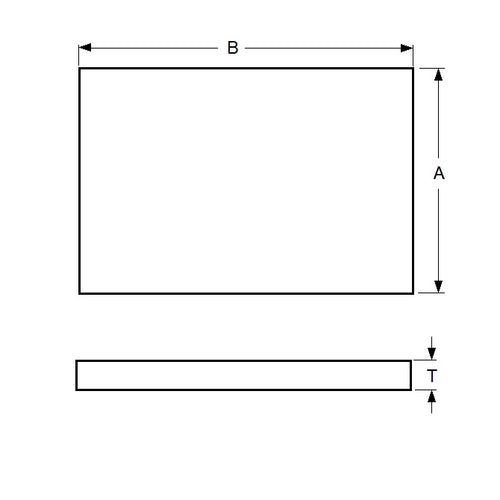

Product Data
- Thickness (t)
:
0.025
mm
(Equiv. 0.001 in.) - Width (w)
152.4
mm
(Equiv. 6 in.) - Length (l)
2540
mm
(Equiv. 100 in.) - Pack Size Single Roll
- Hardness Hard
- Material Brass Commercial
Product Compliance and Data
Additional Resources
Cross References
- 9501K31
- DEBH1
- DE-BH-1
